automatic vertical foam cutting machine
TVA 1400 - TVA 2200
The Automatic Vertical Foam Cutting Machine was designed for the vertical cutting of rigid and flexible polyurethane blocks. It is supplied in two versions based on the cutting dimensions.
The automation of the machine is controlled by the control panel Touchscreen 10”.
Using the programmer it's possible to set the travel distance of the machine, a useful function should it be necessary to perform work on small blocks. Cutting takes place both directions of travel and its speed is adjustable using the potentiometer (located on the control console) as a function of material to be cut. Its progressive start and gradual deceleration ensure a very high cutting quality. Perfect blade sharpening is guaranteed thanks to a pair of motorized grinding wheels located in full view within the cutter shaft.
The blade guide is motorized and allows for a rapid positioning adjacent to the highest part of the material to be cut. Automatic stopping when the machining is complete allows the operator to abandon the machine once it has started.
Why us...
Industry 4.0 Ready
The TVA can be equipped with the Industry 4.0 ready package. In compliance with regulations, the ability to exchange data with company management software ensures digital functions related to increased productivity and traceability of the processes performed.
Ethercat Tecnology
EtherCAT technology is a protocol developed specifically for industry. It uses the Ethernet network, widely used for computer networks, to exchange data between electronic devices installed on board machines. This ensures high data processing speeds and makes the system highly reliable.
Plc Software
The TVA is equipped with software developed directly in-house. This ensures excellent industrial process efficiency and top-quality electromechanical integration.
Remote assistance
Il PLC di comando della TVA è predisposto all'interscambio dati da remoto, ciò rende possibile ai nostri tecnici effettuare diagnosi dell'intero impianto in tempo reale.
TECNICAL DATA
- Kind of processing: cont cutting plates, cutting parallelepipeds, squaring blocks
- Suitable cutting material: rigid and flexible polyurethane and similar materials, rock wool fiberglass and similar materials, cotton fabric, eva foam.
- Cutting system: rotating blade (cut with sharpened or toothed blade)
- Dimension of cutting TVA1400: Base 2200x1400 H1300 mm
- Dimension of cutting TVA2200: Base 2200x2200 H1300 mm
- Total input power: 5.45 KW
- Motor rotation of self-braking blade 950 g/min Kw.4

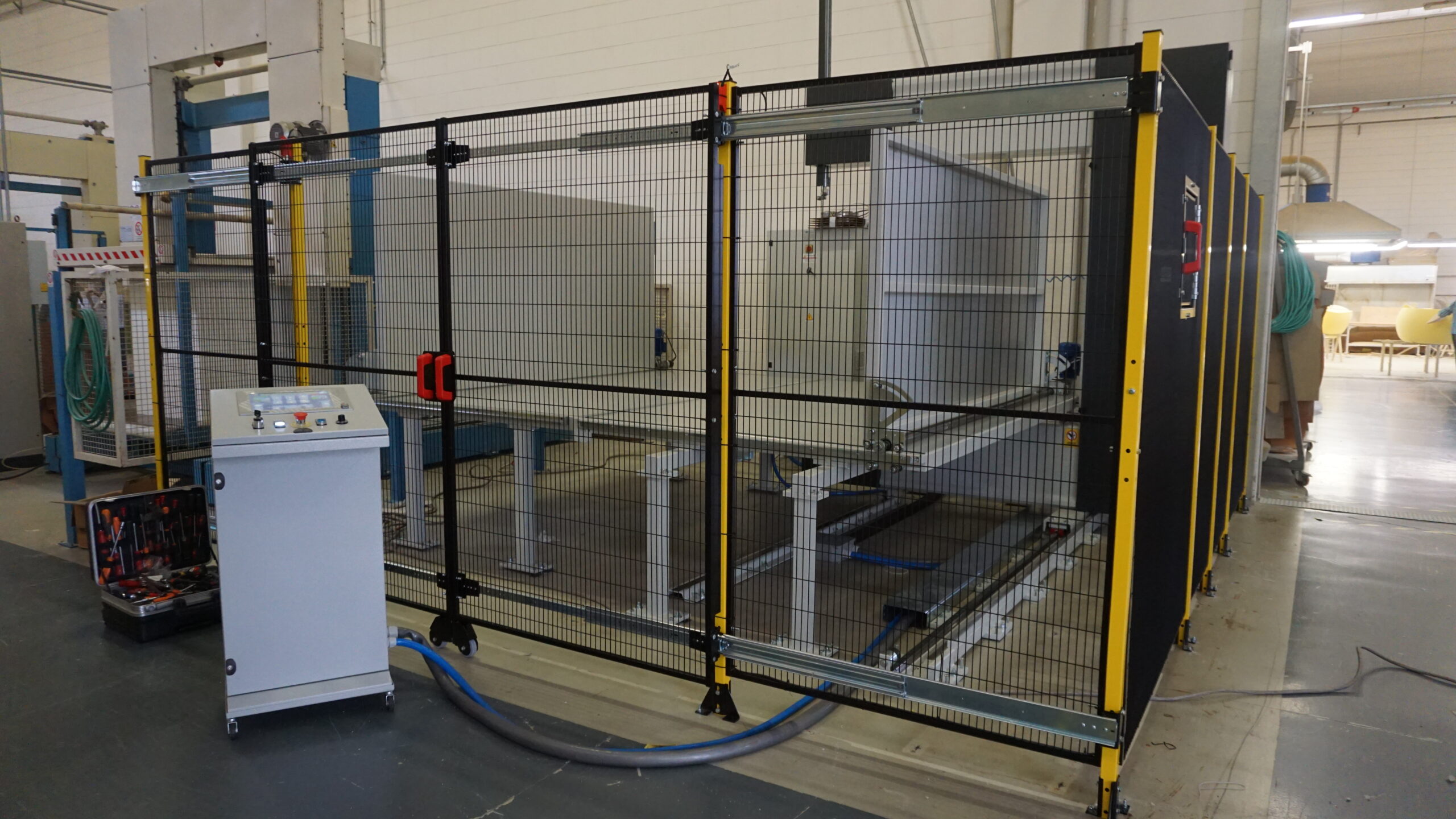

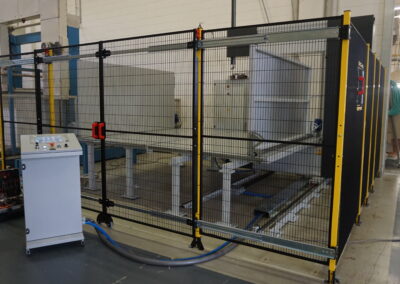

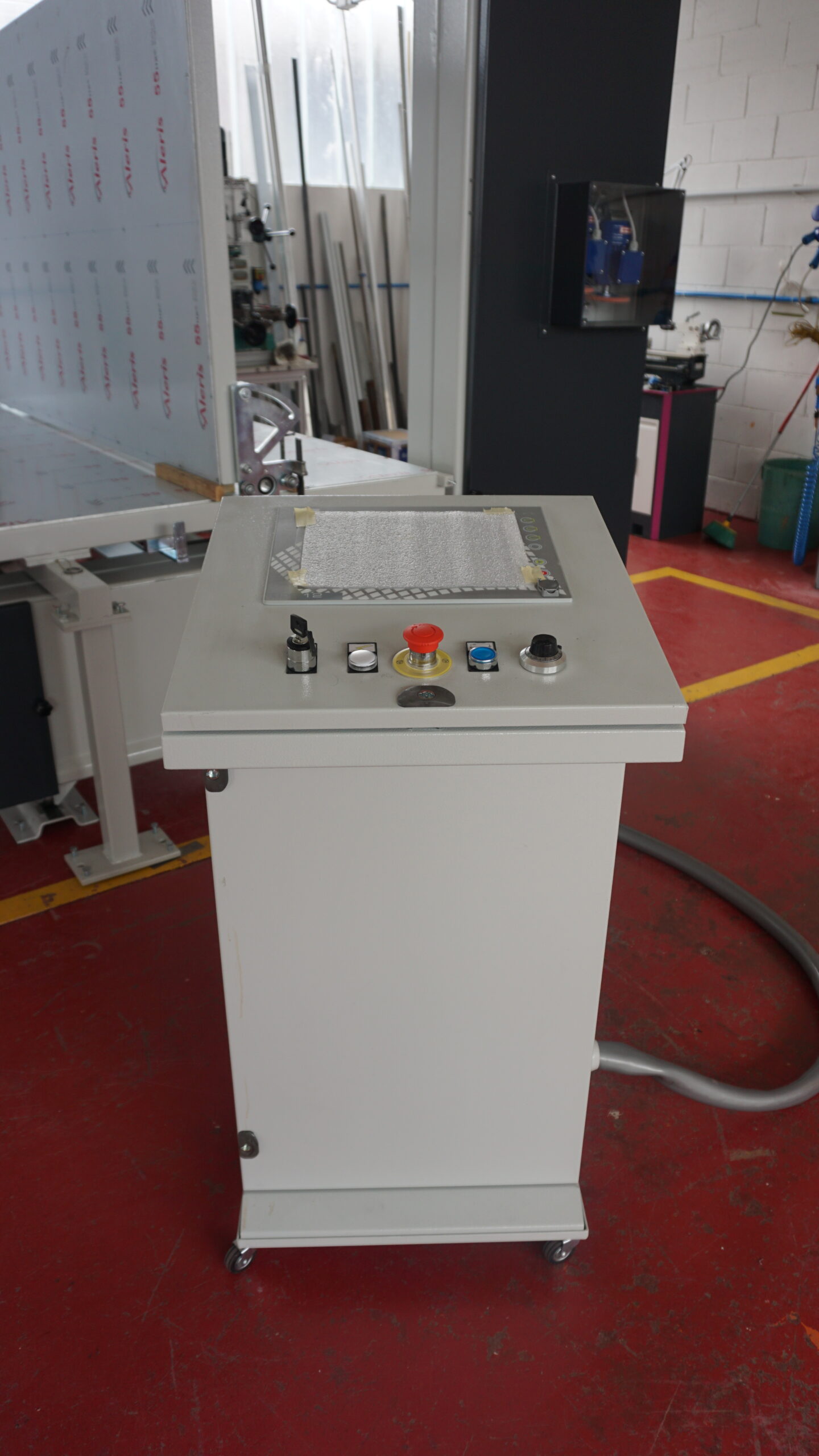

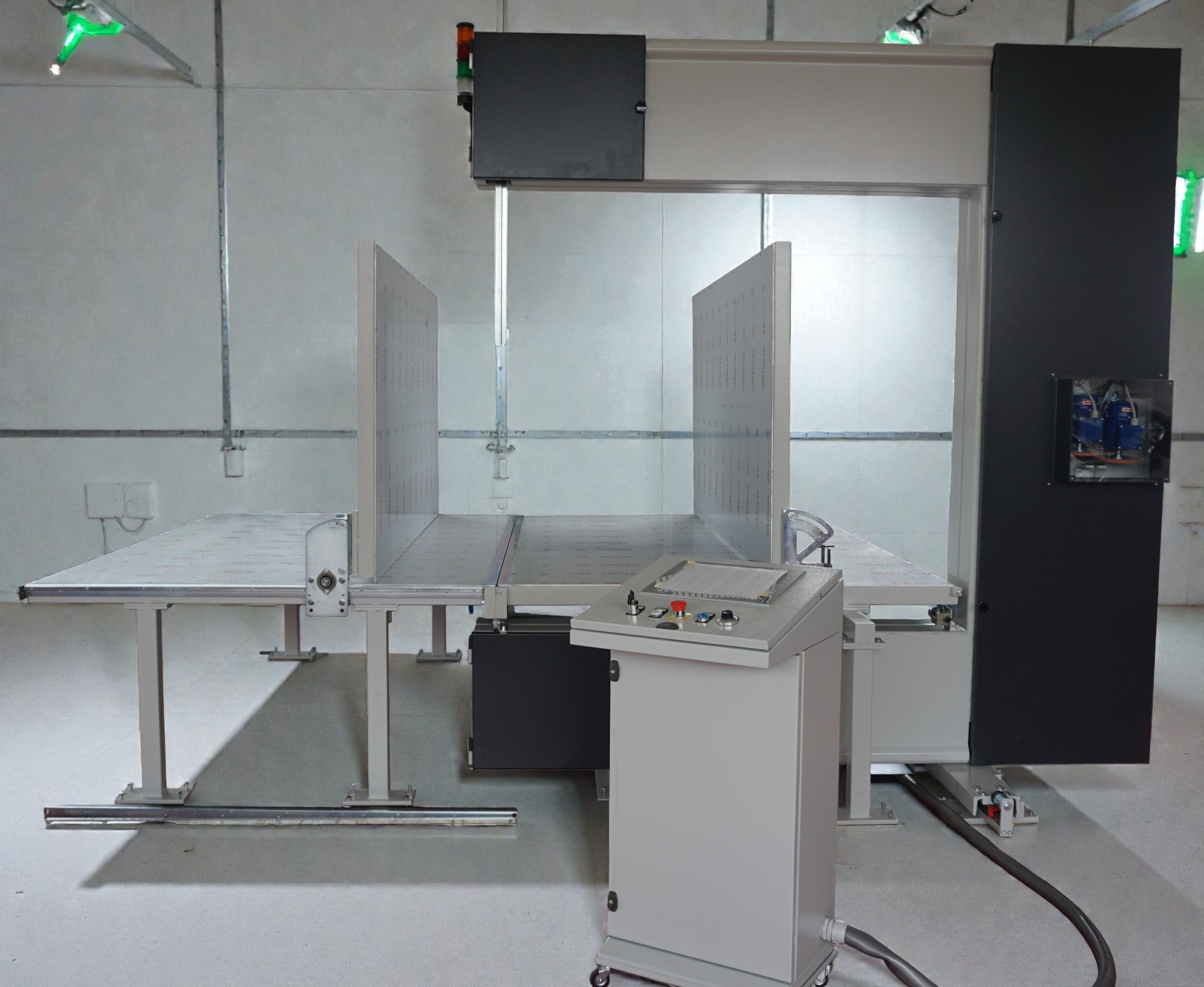

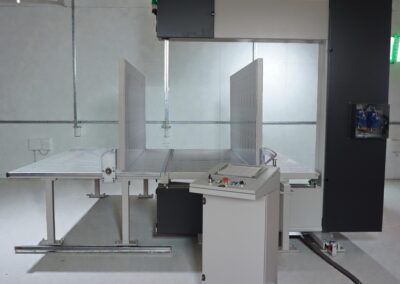

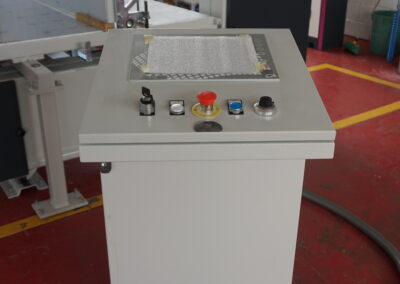

- Electrical control panel sliding on wheels with display 10” Touch screen Mitsubishi with cutting program.
- Programming with functions: automatic and semi-automatic cutting, programmable cutting stroke, cutting correction adjustment
- Control system with PLC Mitsubishi
-Remote assistance control module with Ethernet port.
- N°2 three-phase inverter (one inverter for axis)
- Protective motorized blade guide
- Cutting speed adjustable using potentiometer
- Cutting distance adjustable from cutting program
- 4 fly-wheels diameter 450mm aluminum/rubberized
- Fixed work table aluminum covered
- 2 blade sharpener motors
- Pneumatic blade tension
- Dust Aspirator sharpening
- Side board inclinable up to 45°
- Cuts blocks in both directions of travel
- Automatic shut-off at the end-of-cycle
- Safety Guard conformity CE rules
OPTIONALS:
- Exsternal side board
- Tilting exsternal side board
