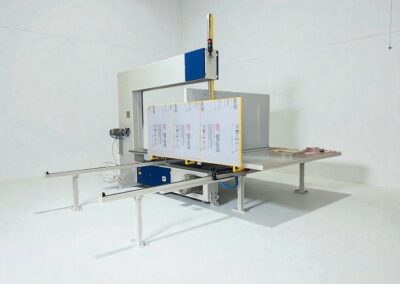

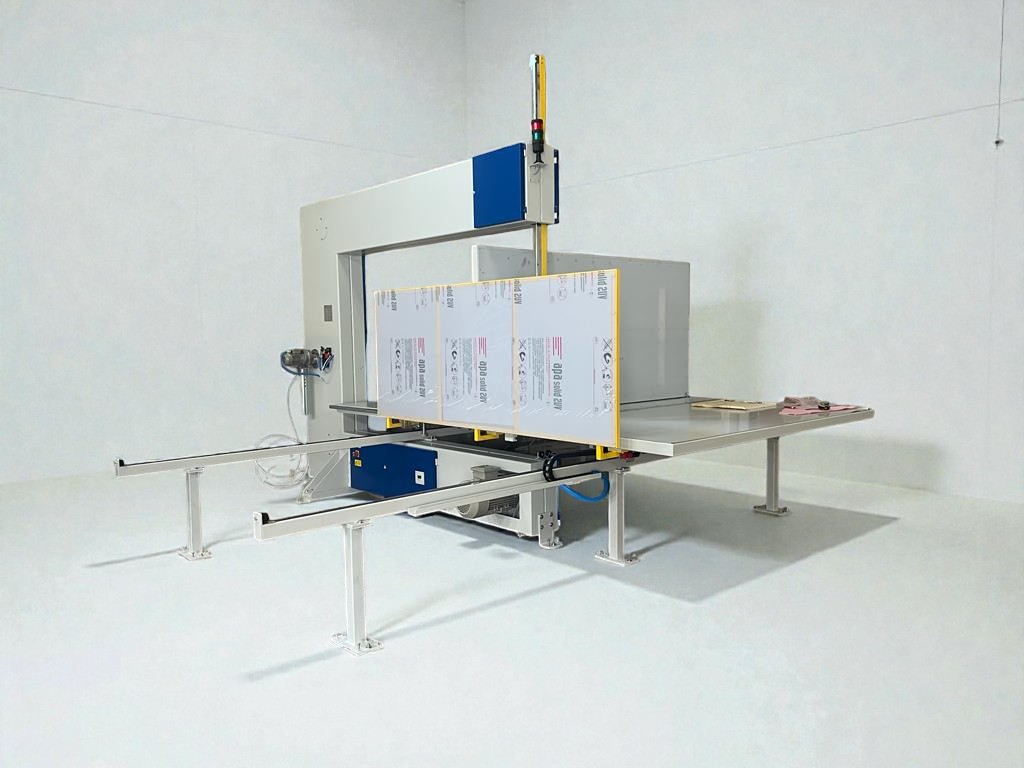

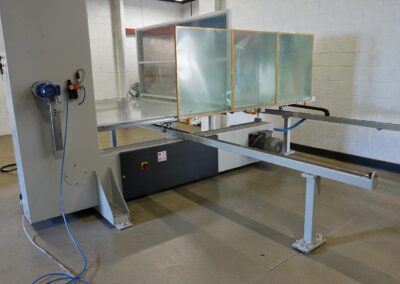

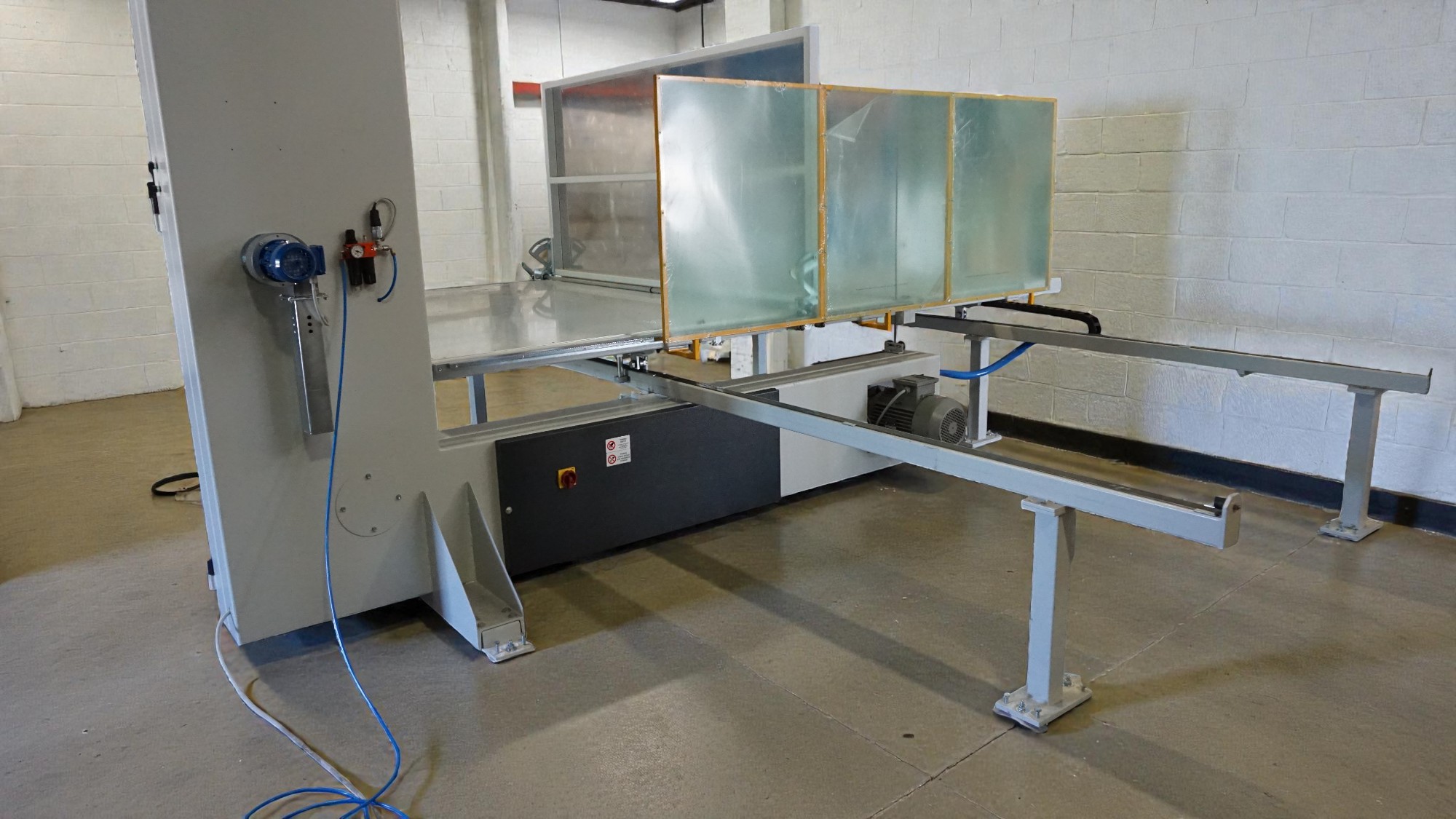

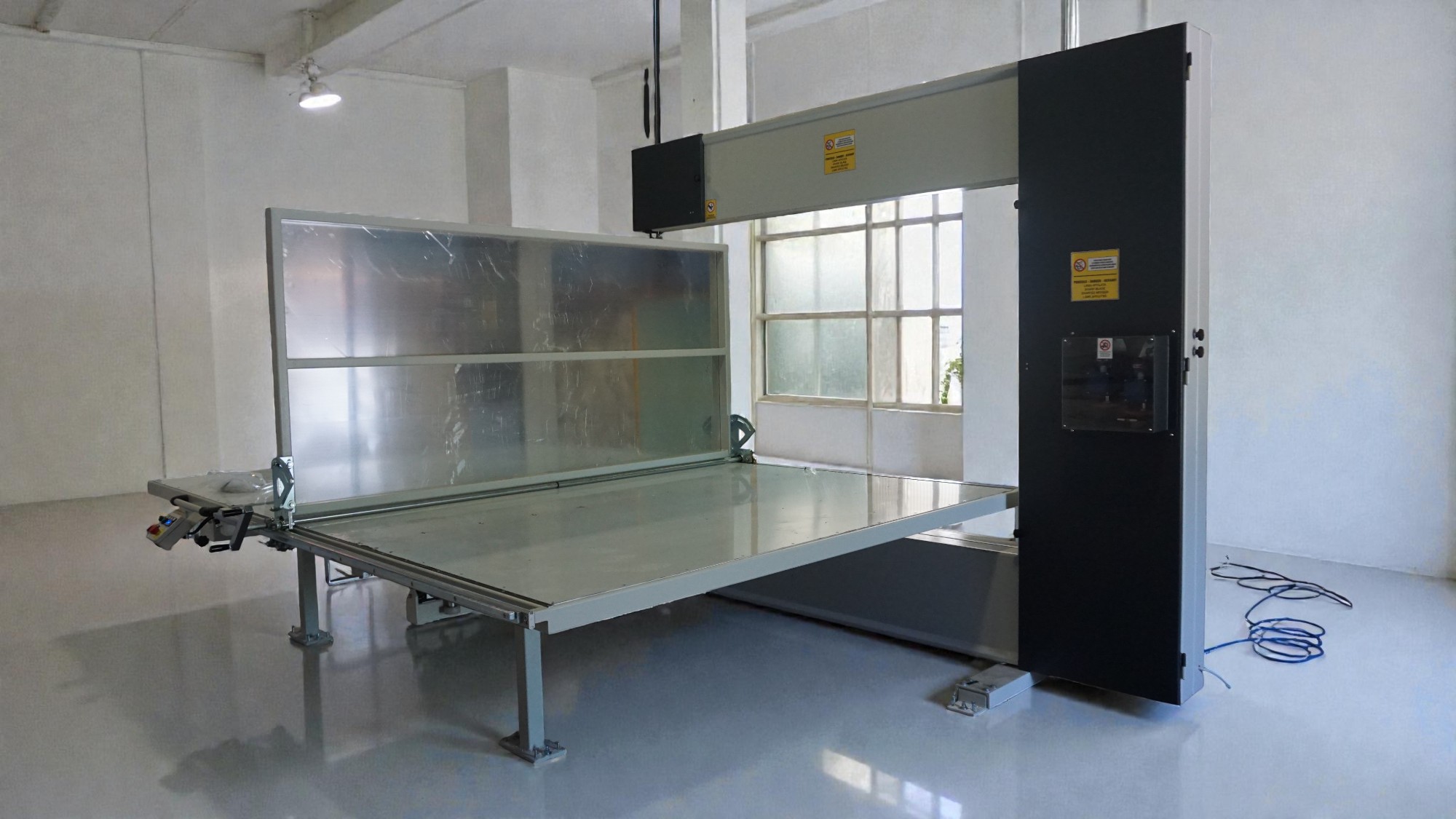

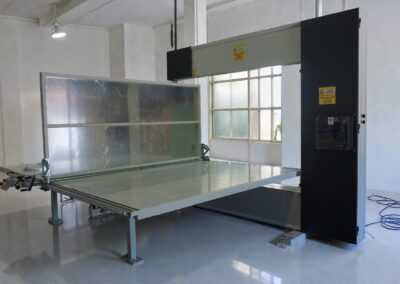

MANUAL VERTICAL FOAM CUTTING MACHINE
TVM 1400 - TVM 2200
The Manual Vertical Cutting foam machine is designed for vertical cutting of rigid and flexible polyurethane blocks. It is available in two versions, depending on the cutting size. It features a practical and precise blade advancement system, and cutting size adjustment is made easy by a millimeter scale located between the table and the block pusher. Perfect blade sharpness is ensured by a pair of motorized grinding wheels, conveniently located inside the cutter body.
The motorized blade guide allows for quick positioning adjacent to the highest point of the material to be cut.
Why us...
Reliability
The TVM is a solid and highly reliable machine, guaranteed to last over time, has a classic style and attention to the smallest details.
TECNICAL DATA
- Process type: sheet cutting, parallelepiped cutting
- Suitable cutting material: rigid polyurethane, flexible polyurethane, and similar materials
- Cutting system: sharpened blade or toothed blade
- Maximum cutting dimensions TVM1400: BASE 2200x1400 H 1250 mm
- Maximum cutting dimensions TVM2200: BASE 2200x2200 H 1250 mm
- Total power consumption: 4.36 kW
- Motorized blade guide
- Pneumatic blade tension
- Rubber-coated aluminum flywheels
- Self-braking blade rotation motor 950 rpm 4 kW
- Millimeter scale indicator for side panel advancement
- Manual rack-and-pinion side panel advancement

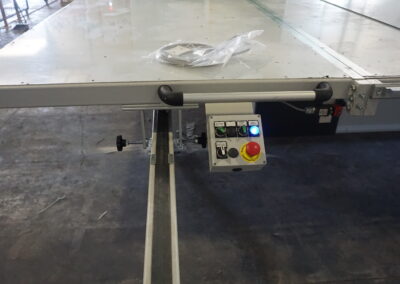

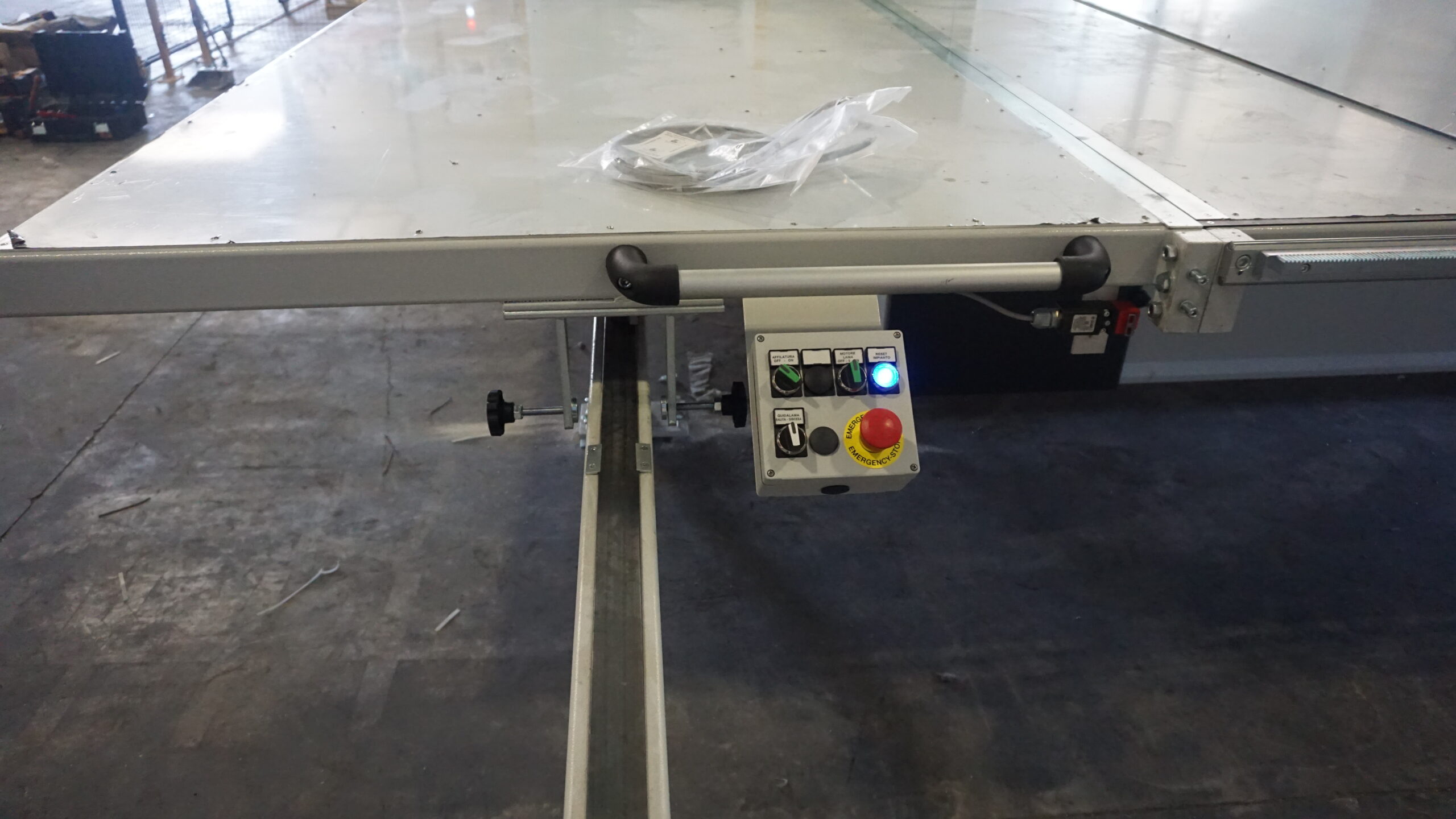

- Control panel for blade start/blade guide up/down/sharpening/emergency
- Aluminum-covered mobile table sliding on rails
- Blade sharpening with 2 motorized grinding wheels
- Sharpening dust extractor
- Tilting side panel up to 45°
- Block cutting in both directions
- Front and rear plexiglass safety guards with safety key limit switches
- CE standard rules
